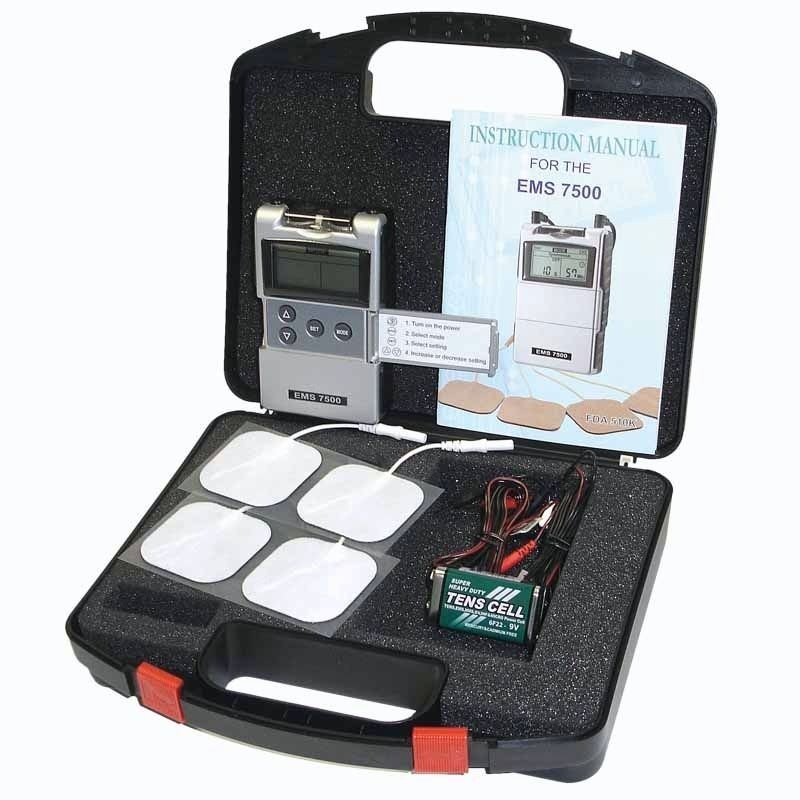

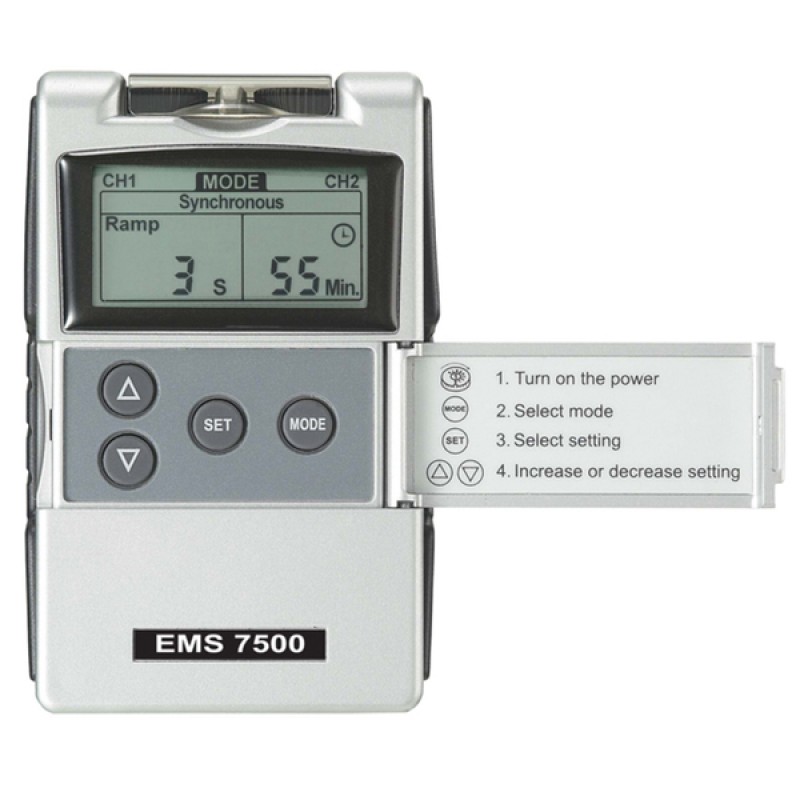

V2U NMES D1 7500 Neuromuscular Electrical Stimulator

NMES is a muscle stimulator that works by sending electronic pulses to the muscles needing treatment, causing the muscle to exercise passively

Intended use :
✔ Relax muscle spasms
✔ Prevent disuse atrophy
✔ Improve local blood supply
✔ Muscle re-education
✔ Immediate post-surgical use to prevent thrombosis in calf
✔ Maintain or increase the Range of motion

Specifications:
  • Portable, handheld lightweight unit, battery operated
  • Dual Channel, each channel running independently
  • Pulse Amplitude: Adjustable, 0-80mA at 500 ohm load each channel
  • Output voltage adjustable: 0-40Vmax output 40V peak to into 500ohm
  • Load each channel
  • Wave form Asymmetrical rectangular biphasic pulse
  • Power supply: 9 volt battery type 6F22 x1
  • Size: 10.1 cm (L) X 6.1cm (W) X2.45cm (H)
  • Weight: 150 grams with battery
  • On time adjustable 2-90 seconds, 1 sec/step
  • Off time adjustable 0-90 seconds, 1 sec/step
  • Ramp up time adjustable 1-8 seconds
  • Pulse rate adjustable 2-150Hz, 1 Hz/step
  • Pulse width: adjustable 50-300 microsecond, 10 microseconds/step
  • Output mode: continuous, synchronous, alternate
  • The unit can store 60 sets of operation records
