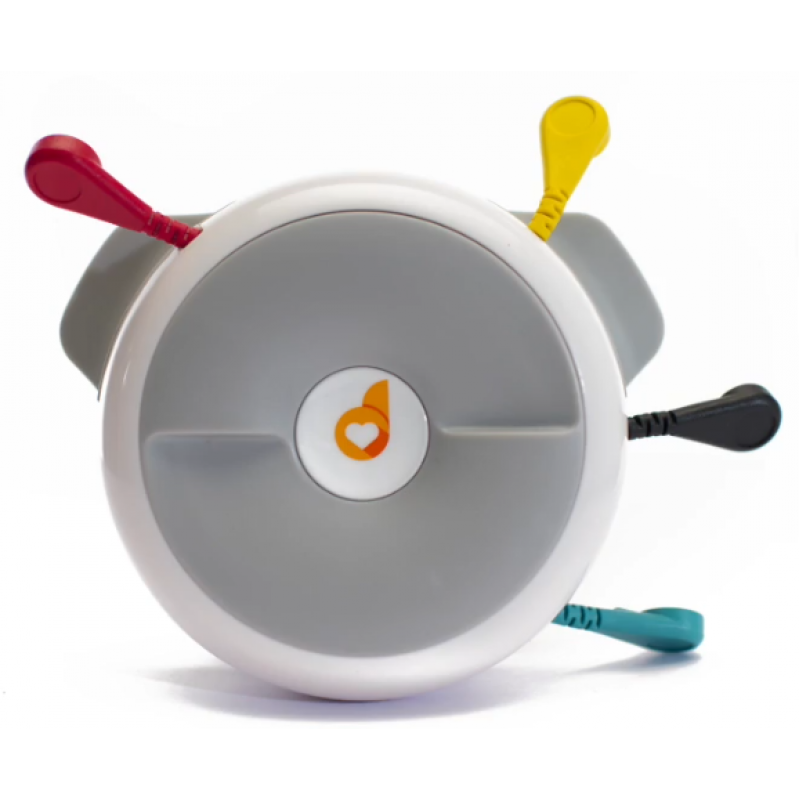

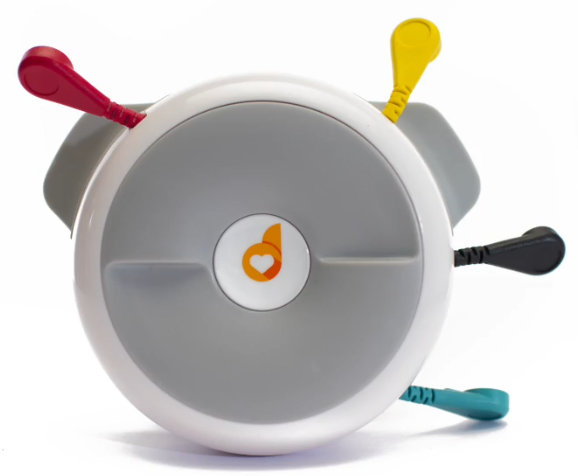

D-Heart Portable 12-Lead Smartphone ECG EKG Bluetooth Heart Rate Monitor

D-Heart Portable 12-Lead Smartphone ECG EKG Bluetooth Heart Rate Monitor



Take a medical-grade EKG anytime, anywhere. In just 30 seconds, detect Atrial Fibrillation, Bradycardia, Tachycardia or Normal heart rhythm



Click here to download D-Heart Presentation



What is D-Heart?

D-Heart is the first smartphone ECG device that simple to use, clinically reliable, portable and affordable. It allows anyone to perform a hospital-level ECG in total autonomy and to send the results to the 24/7 tele-cardiology service or to your trusted doctor.

D-Heart allows you to track your heart health, to explain possible unclear symptoms or to monitor the efficacy of your medications.

With D-Heart you can become an engaged partner in the management of your health.

It’s your task to record an ECG whenever you have symptoms, to share it with your trusted physician and to establish a shared decision making process with your doctor.

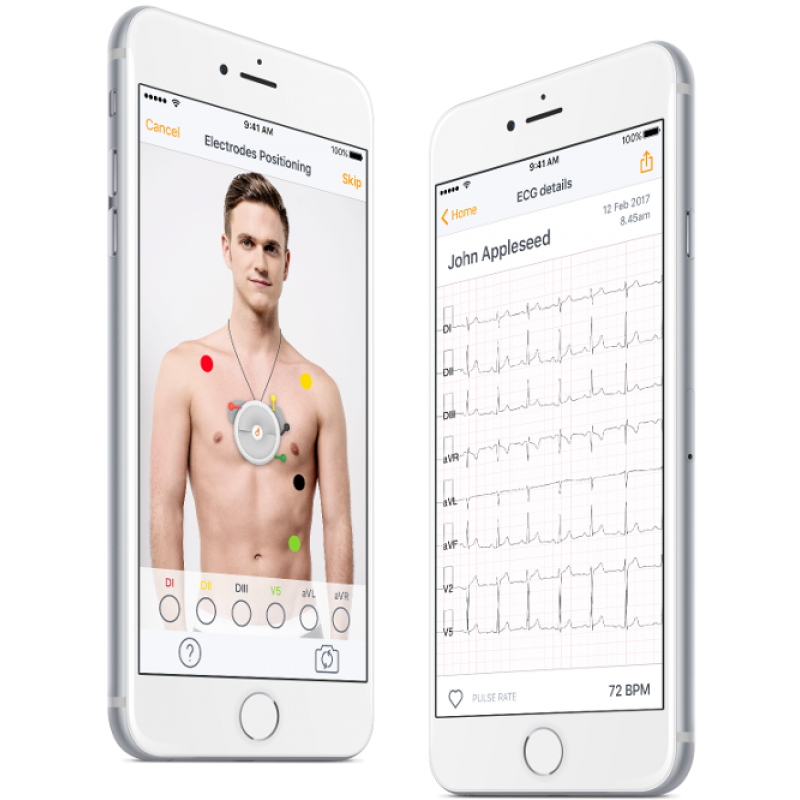

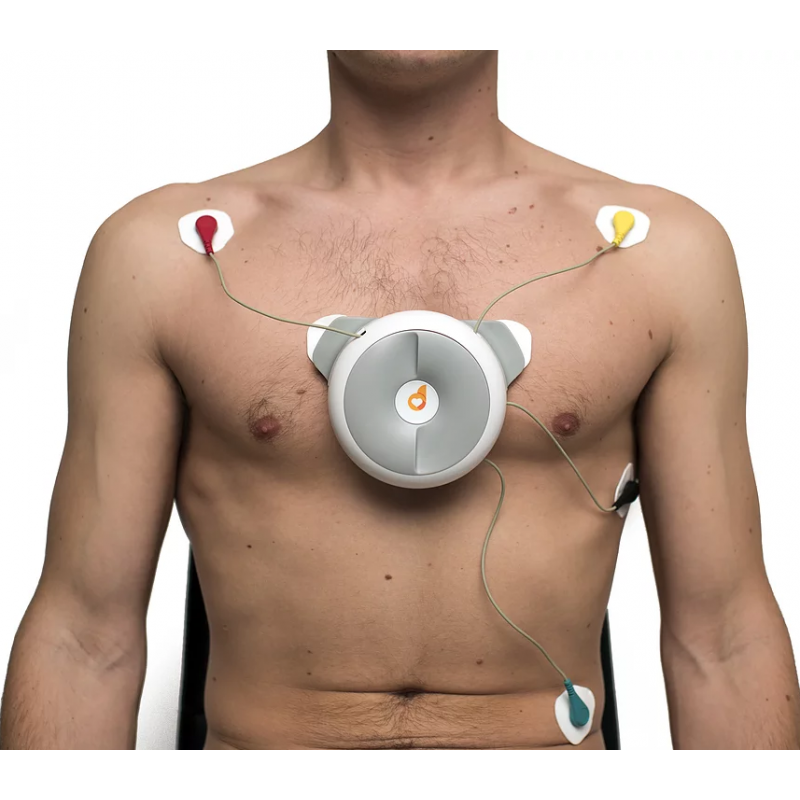

Thanks to image-processing and artificial intelligence we guide you to the correct electrode's placement by showing your own chest picture with virtual marks placed where you should stick the electrodes.





If you ever wondered about your heart health, you probably came across an ECG monitor and perhaps wondered how ECG testing or monitoring works


Overview

  • Portable Hospital grade smartphone ECG designed for the patient.
  • Telecardiology service available for purchase 24/7 (see below): expert cardiologists will report the exam within 15 minutes with a suggestion on how to handle your situation.
  • You will receive your personal D-Heart, the case, a charger, 60 disposable electrodes (for 10 ECG recordings) and the first ECG report is included
  • Medical grade ECG (12 to 72 seconds of recording)

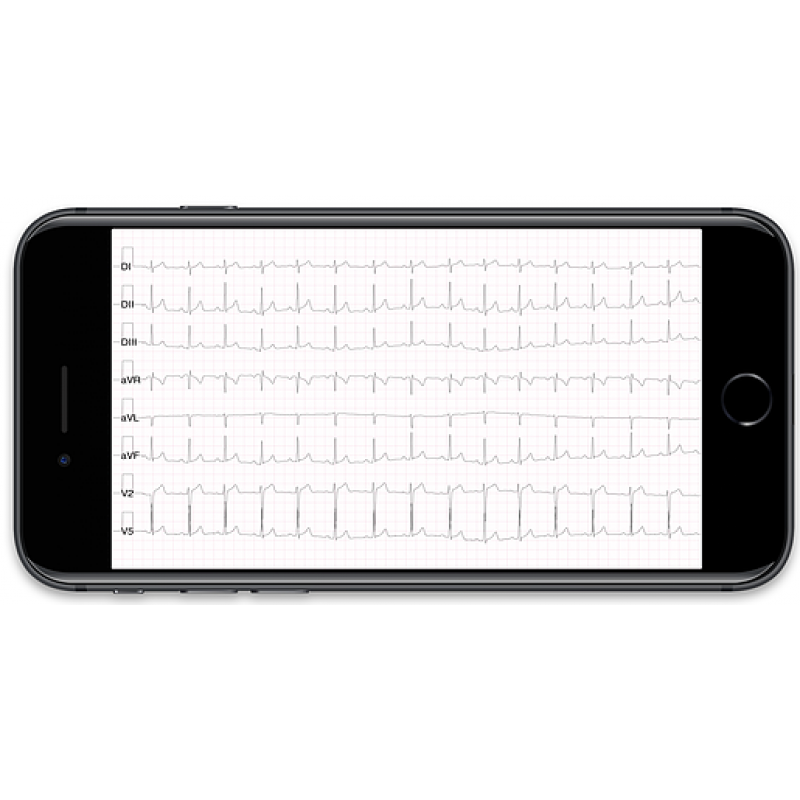

  • Bluetooth ECG streaming in real time
  • The app guides you to perform a professional ECG
  • Charge the device directly in the case
  • Italian design and manufacturing
  • ECG as reliable as in the hospital
  • Tele-cardiology service available 24/7


D-Heart Works with:

  • iOS - iPhone 5, 5c, 5s, SE, 6, 6s, 6 Plus, 6s Plus, 7, 7 plus, 8, 8 plus, X, iOS 11.1
  • Android - Lenovo Moto G5, Samsung Galaxy J5, S6, S7, S8, S9, Google Nexus 5X, Honor, Android version 5.0 to 8.0
  • Tablets - iPad, iPad Air, Air 2, Mini 2, Mini 3

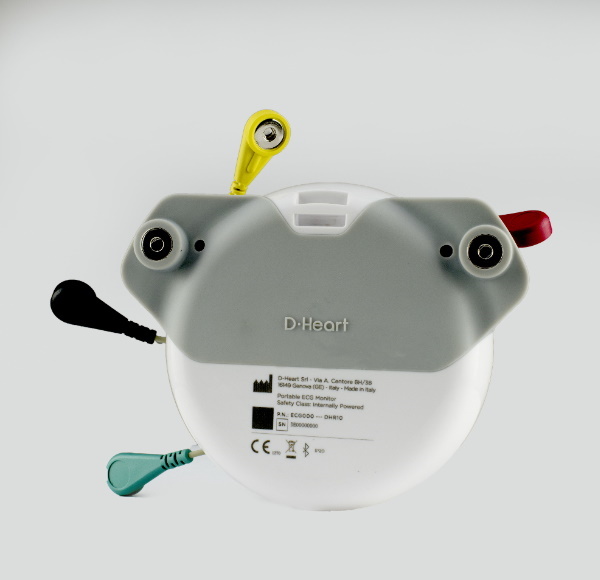

Dimensions:

  • 117 x 133 x 44 mm
  • 31 x 43 mm electrodes


Weight:

  • 196 grams (0.196 kilograms)


Shipping dimension and weight:

  • 28 x 23 x 13 cm
  • 2.5 kg


Power:

  • 1 lithium rechargeable battery (included)
  • 24 hours continuous operating time
  • 6 times per month typical use

ECG Characteristics:

  • 8 to 12 Lead ECG
  • 12 to 72 seconds recording duration
  • 640 Hz transmitted in 4 intervals by 160 Hz
  • Horizontal Resolution: 6,25ms
  • Vertical Resolution: 0.0068mV


WHAT IS D-HEART



WHAT IS AN ECG?




ECG is the abbreviation of the word electrocardiogram – a heart test that tracks the electrical activity of your heart and records it on a moving paper or shows it as a moving line on a screen. An ECG tracing is the most simple, diffuse and cost-effective way to analyse the heart and detect irregularities that might lead to serious health problems such as a stroke or heart attack. By looking at an ECG, a doctor can discern medically relevant information about the health and activity level of your heart muscle, much more than you can tell from your heart rate alone that performs most of the wearable devices.


HOW DOES AN ECG DEVICE WORK?

To get an ECG trace, an ECG device is needed to record it. As the electrical signals move through the heart, the ECG monitor records the strength and the timing of these signals. ECGs are the required gold standard for diagnosis of arrhythmias and many cardiac abnormalities, and can even be used to see evidence of acute heart attacks and even events that have occurred in the past. As traditional ECG recorders and Holter monitors require intrusive skin preparation, professional fitting in the doctor's office, they cannot be used by individuals with no medical background.


D-Heart has designed the world's first ECG device that is as reliable as hospital ECGs and it can be used anywhere by anyone with no medical background. It works with your iPhone or iPad via Bluetooth and it can be worn whenever you want to check your heart health or you feel a strange symptom.




WHY D-HEART CAN BE IMPORTANT FOR ME?


PREVENTION




The best way to prevent a heart problem is to regularly check your heart with reliable exams. The risk of heart attack commonly increases with age or due to familial predisposition. If a heart attack is acute, help often comes too late. It is therefore important to monitor your heart with regular checks. You can thereby detect early changes and treat them quickly. In the worst-case situation, you can even prevent heart damage. This protects your heart.

Furthermore, the fitter your heart muscle is, the better you can prevent cardiovascular disease. Frequent movement and exercise train and strengthen the heart. D-Heart is the perfect companion to perform a heart check before and after exercising. Gain reassurance knowing if your heart is okay.


DIAGNOSIS


You have intermittent or regular chest pain or discomfort from a racing heart? Your physician hasn't been able to give you a definitive diagnosis? The reason for this lies in the time delay from when your symptoms are present and when you see your physician at his office. It’s very hard for the doctor to establish a diagnosis when the symptoms have subsided. Your doctor can best determine the cause for your symptoms when a reliable ECG is recorded when symptoms are present. D-Heart is a hospital level ECG that can be used anytime and anywhere easily and can be the best solution for you.


Only with hospital level multiple lead ECG such as D-Heart you can accurately recognize complex arrhythmias or heart attacks.


MONITORING


If you have already received treatment for your heart problem and you want to monitor your condition D-Heart is the best solution for you.


As a matter of fact cardiologist recommend that Smartphone ECG monitor should be used to control patients after specific cardiac treatments, such as atrial fibrillation ablation. If symptoms recur, the feeling that the treatment was not totally successful often arises. You should record an ECG at the time your symptoms occur so that you can show it to your physician and therefore adjust accordingly your treatment.


Remember that only with a multiple lead ECG such as D-Heart (8 leads) recurrent complex arrhythmias can be recognized and even localized. Your cardiologist would always be a click away!





D-Heart allows you to track your heart health, to explain possible unclear symptoms or to monitor the efficacy of your medications.With D-Heart you can become an engaged partner in the management of your health.


It’s your task to record an ECG whenever you have symptoms, to share it with your trusted physician and to establish a shared decision making process with your doctor.

Thanks to image-processing and artificial intelligence we guide you to the correct electrode's placement by showing your own chest picture with virtual marks placed where you should stick the electrodes.



        Get The App

App Store                                       Google Play

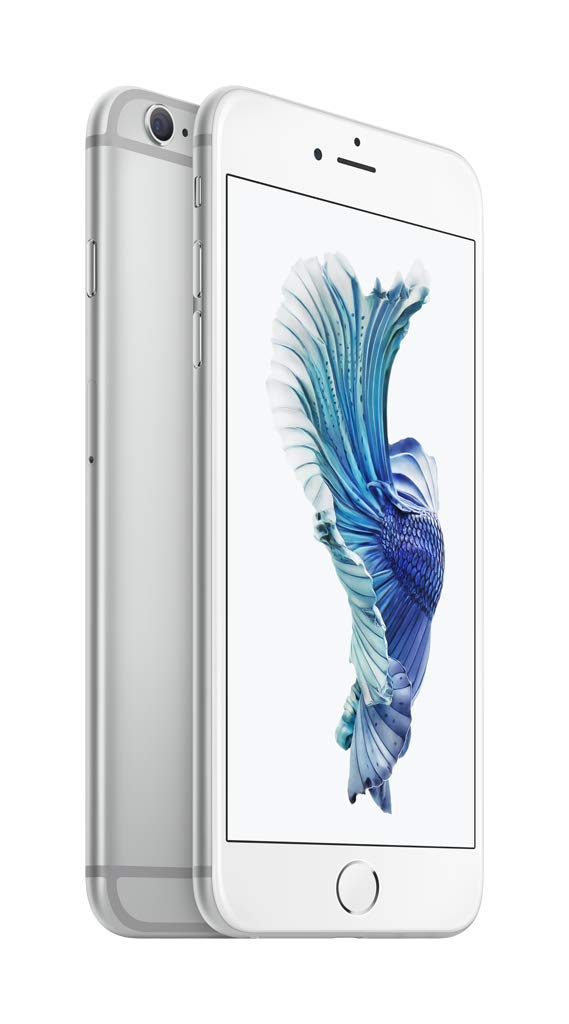

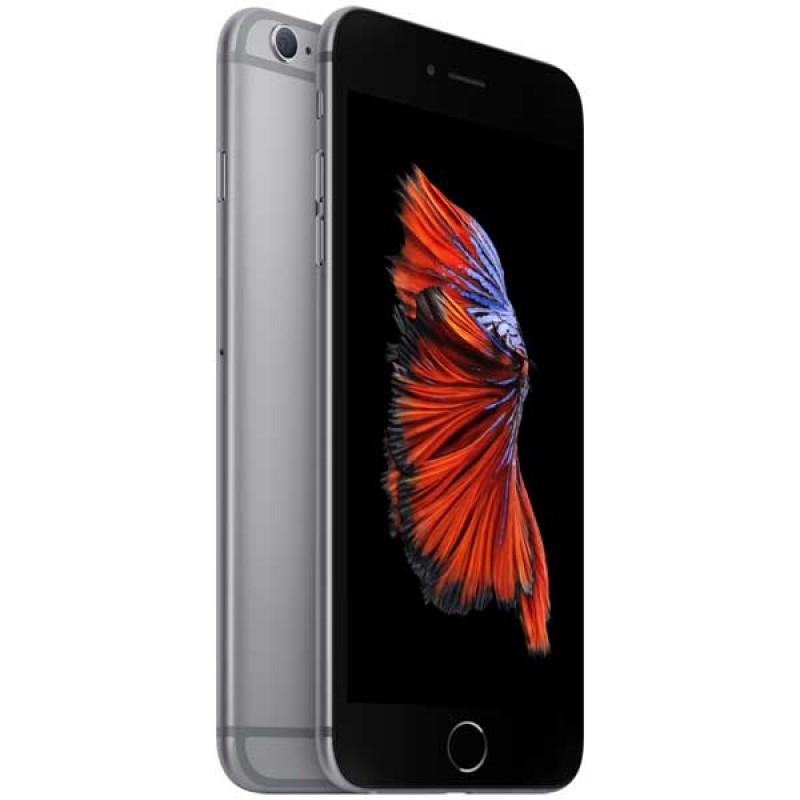

1.  Apple Iphone 6S Plus (Pre-owned Excellent Condition)

  • Weight: 192g
  • Dimension:  158.2 x 77.9 x 7.3mm
  • OS: iOS 10
  • Screen size: 5.5-inch
  • Resolution: 1080 x 1920
  • CPU: Apple A9
  • RAM: 2GB
  • Storage: 64GB
  • Battery: 2750mAh
  • Rear camera: 12MP
  • Front camera: 5MP
  • Fully setup for instant use
  • Installed D-Heart App with pre-registered 2 user accounts



2.  ECG Electrode Pads (set of 250 pcs)



  • Size: 36 x 42mm
  • Shape: Teardrop
  • Pregelled Solid Gel disposable electrode
  • Ag/AgCl Silver Chloride Sensor
  • Stainless steel button stud connector
  • Reduces motion artifacts
  • Hypoallergenic and Latex-free
  • Hermetically sealed packaging
  • Easy to apply and secure self-adhesive, disposable electrode
  • 1.5mm thick latex free PE foam backing w/ conductive Hydrogel
  • Suitable for electrocardiogram, electromyogram
  • Packaged in 50pcs / pouch
  • Medical Devices Directive 93/42/CE Annex VIII Class I, ISO 13485: 2016 certified

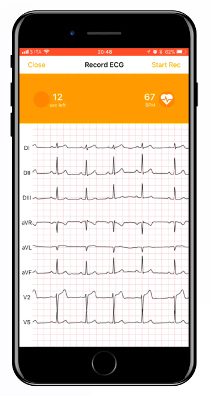

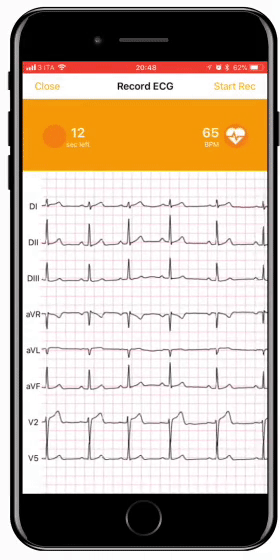

The app guides you to
perform a professional
               ECG
Specifications
Product Dimensions (cm) 11.7 x 13.3 x 4.4
Product Weight (kg) 0.2
Warranty 2 Years
Shipping Details
Availabillity Yes
Delivery Time 15 - 30 days
Shipping Dimension (cm) 1.80 x 1.50 x 6
Shipping Weight (kg) 300

Write a review

Note: HTML is not translated!
    Bad           Good

  • Brand: D-Heart
  • Product Code: DH-ECG
  • Availability: In Stock
  • RM 3,580.00

Tags: ecg, ekg, portable ecg, holter, heart health, cardiovascular, cardiology, d-heart
