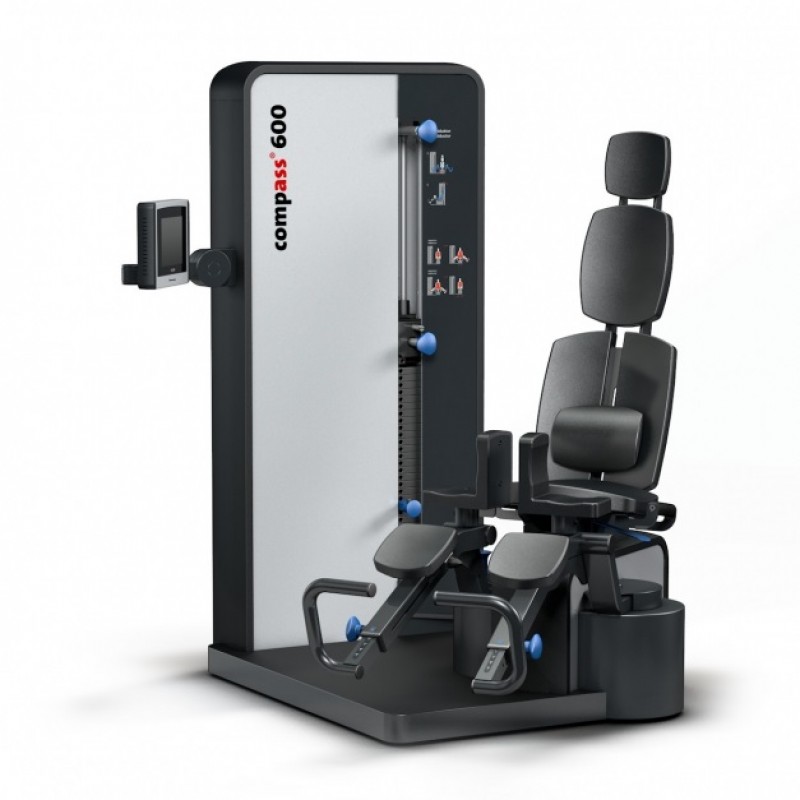

Proxomed Compass 600 Functional Strength Training for Leg Abduction / Adduction

Leg Abduction / Adduction Functional Medical Strength Training Compass® 600



Training with sinus curve


Stepless adjustment of the seat depth via pneumatic spring


Ultrasound sensors for automatic weight detection


Features:

  • Dual-function machine for leg abduction / adduction
  • 8 inches high resolution color touchscreen
  • Integrated chip card/RFID system
  • Ultrasound sensors for automatic weight detection
  • Adjustable starting position from the training position
  • Continuous adjustment of seat depth via pneumatic spring
  • Adjustable knee support pad for both adduction and abduction
  • Adjustable foot support bar for close and open chain training
  • Training weight 0 - 84 kg
  • 1 kg step weight increment
  • Steplessly adjustable inclination of the backrest via pneumatic spring
  • Training in open and closed chain
  • Stepless length adjustment of the footrest (Optional)



Options:

  • 100 kg weight block (20 x 5 kg)
  • Fine weight adjustment 1 kg
  • SmartPanel compass 600
  • Medical LAN Isolator
  • Position sensors
  • Movement limitation
  • Holder for drinks bottle
  • Holder for Zimmer frames
  • Lordosis support
  • Footrest left & right, adjustable
  • proxotrain software


Technical data:

  • Dimensions (L/W/H) approximately 166 x 137 x 165 cm
  • Total weight block 80 kg (16 x 5 kg)
  • Total weight approximately 500 kg




Our Compass 600 machine series gives you eight combination units in an innovative, contemporary design. The compass units are particularly special thanks to their perfect biomechanics and sensor technology for positioning.


Varied training, simple operation, space-saving and user-friendly.

Among experts, the name compass stands for outstanding biomechanics. Only a few configurations are required for effective training and consistently good results in MTT. This optimises the processes in your establishment and creates time for your patients. The start position can be set from the training position. Isometric force measurement for comparative measurement of maximum strength is possible.
The devices are designed for sizes of 150 cm to 210 cm. The 200 kilogram user weight allows training even for very heavy patients.


Ergonomics and design

If each control element is positioned where one would suspect, it is easier for patients and therapists. The combi devices of the compass 600 line shine in a modern and timeless design. Anatomically formed foam cushions ensure maximum sitting comfort. The stable "made in Germany" manner of construction allows the highest weight carrying capacity.


Integration into training management

It goes without saying that the compass 600 devices can be integrated into the proxotrain training planning and management systems. In addition, the SmartPanel allows biofeedback training. The LAN socket ensures connection with the therapist workplace/proxOS Station.


Your advantages:

  • Real time monitoring all devices on central station
  • 8 inches high resolution color touchscreen
  • Chip card or RFID system for identifcation and training control
  • Optimized biomechanics for safe test and effective training
  • Space-saving double or multi-function devices
  • Ultrasound sensors for automatic weight detection
  • Excellent stabilization and positioning
  • Integrated isometric, sub-max. strength test and ROM test
  • Visual biofeedback strength training with sinus curve
  • Automatically progressive training plan through RPE after each training
  • Tested safety in accordance with the German Medical Devices Act


Specifications
Product Dimensions (cm) 166 x 137 x 165
Product Weight (kg) 500
Shipping Details
Availabillity In Stock
Delivery Time 9 - 15 days
Shipping Dimension (cm) 176 x 147 x 175
Shipping Weight (kg) 520
